SANWA CD800a CD800a3 High-Precision Multi-Parameter Voltage Current Analyzer True RMS Auto Range CAT IV 600V CE Certified

Product Categories
Mengchuan Instrument Co,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

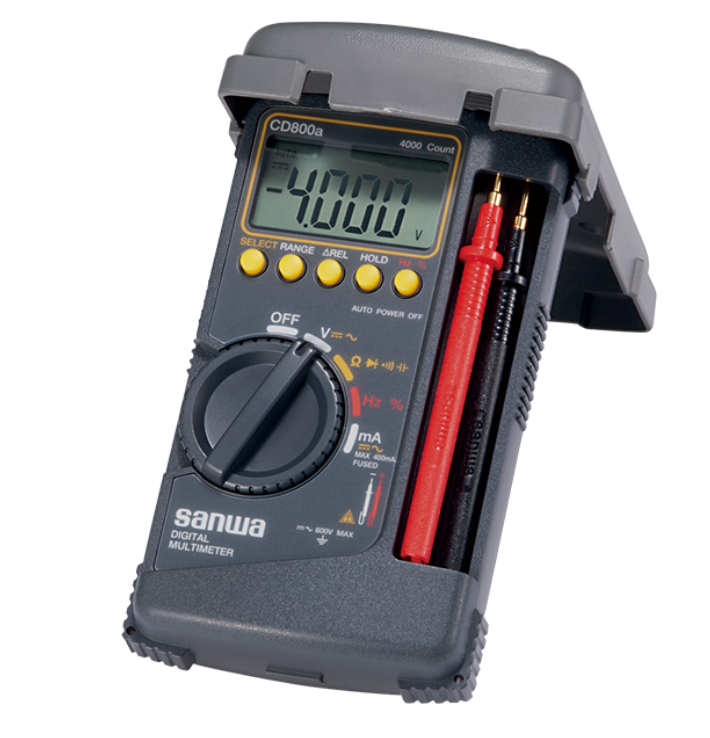

SANWA CD800a CD800a3 High-Precision Multi-Parameter Voltage Current Analyzer True RMS Auto Range CAT IV 600V CE Certified

Supply Ability : 1000

warrany : 1 year

Model Number : CD800a

MOQ : 1

Delivery Time : in stock

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Accuracy Class : ±(0.7% + 3)

Price : USD32/PC

Max. DC Current : 600mA

Certification : -

Brand Name : SANWA

Place of Origin : China

Packaging Details : Original

Contact Now

SANWA CD800a CD800a3 High-Precision Multi-Parameter Voltage Current Analyzer True RMS Auto Range CAT IV 600V CE CertifiedSANWA CD800a CD800a3 High-Precision Multi-Parameter Voltage Current Analyzer True RMS Auto Range CAT IV 600V CE CertifiedSANWA CD800a CD800a3 High-Precision Multi-Parameter Voltage Current Analyzer True RMS Auto Range CAT IV 600V CE CertifiedSANWA CD800a CD800a3 High-Precision Multi-Parameter Voltage Current Analyzer True RMS Auto Range CAT IV 600V CE CertifiedSANWA CD800a CD800a3 High-Precision Multi-Parameter Voltage Current Analyzer True RMS Auto Range CAT IV 600V CE CertifiedSANWA CD800a CD800a3 High-Precision Multi-Parameter Voltage Current Analyzer True RMS Auto Range CAT IV 600V CE Certified

Parameters Measured
DC Current, AC Voltage, Frequency, DC Voltage, Duty Cycle, Capacitance, Continuity, Diode, Resistance, AC CURRENT
Show more
Accuracy Class
±(0.7% + 3)
Max. DC Voltage
600 V
Max. AC Voltage
600 V
Max. DC Current
600mA
Max. AC Current
600mA
Digits Displayed
4000 (CD800a) / 6000 (CD800a2, CD800a3)
Measuring Voltage Range
0-600 V
Measuring Current Range
60 mA - 600 mA
Measuring Resistance Range
600 Ω ~ 60 mΩ
Feature
True RMS, Auto Range, Data Hold, Max/Min, Relative Function, Backlight, Auto Power Off, EF Detection
Show more
Measuring Capacitance Range
60 nF ~ 6 mF
Measuring Inductance Range
9.999Hz - 99.99kHz
Operating Temperature
0°C - 40°C
Material
Plastic, ABS, reinforced body cover
Application
Industrial Use, DIY, Electrical maintenance, R&D, education
Low Battery Indicator
Yes
Place of Origin
China
Model Number
CD800a / CD800a2 / CD800a3
Brand Name
SANWA
Dimensions
Please see the Products Description for details.
Safety Category
IEC61010 CAT IV 600V / CE Certified
